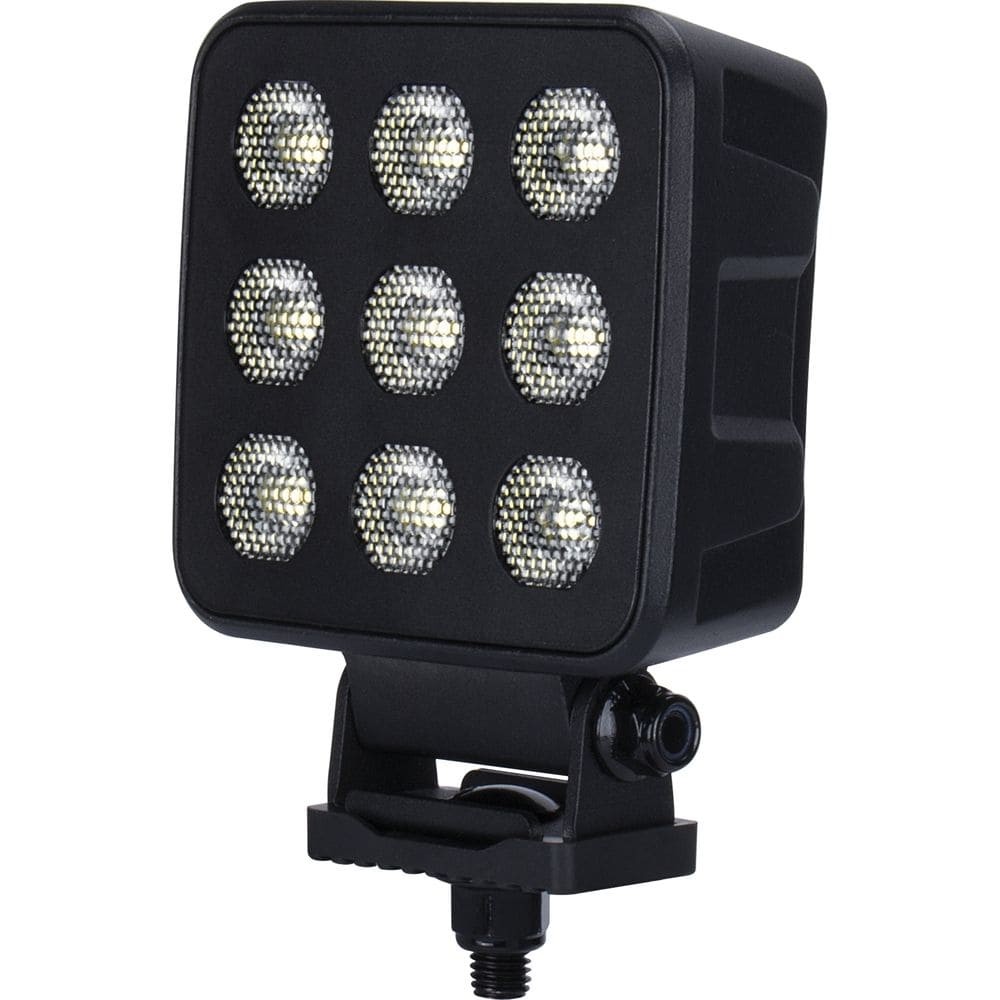

All Black Series 3.94 Inch Square LED Work Light

. LED Chip: 18pcs*5W OSRAM LED
. Raw Power: 90W
. Actual Power: 37-50W
. Raw Lumen: 9900lm
. Effective Lumen: 3962-5715lm
. Operating Voltage: 9-36VDC (with surge Protection)
. Current Draw: 12V/3.27A; 24V/1.55A
. Beam Pattern: Flood
. Color Temperature: 5000K

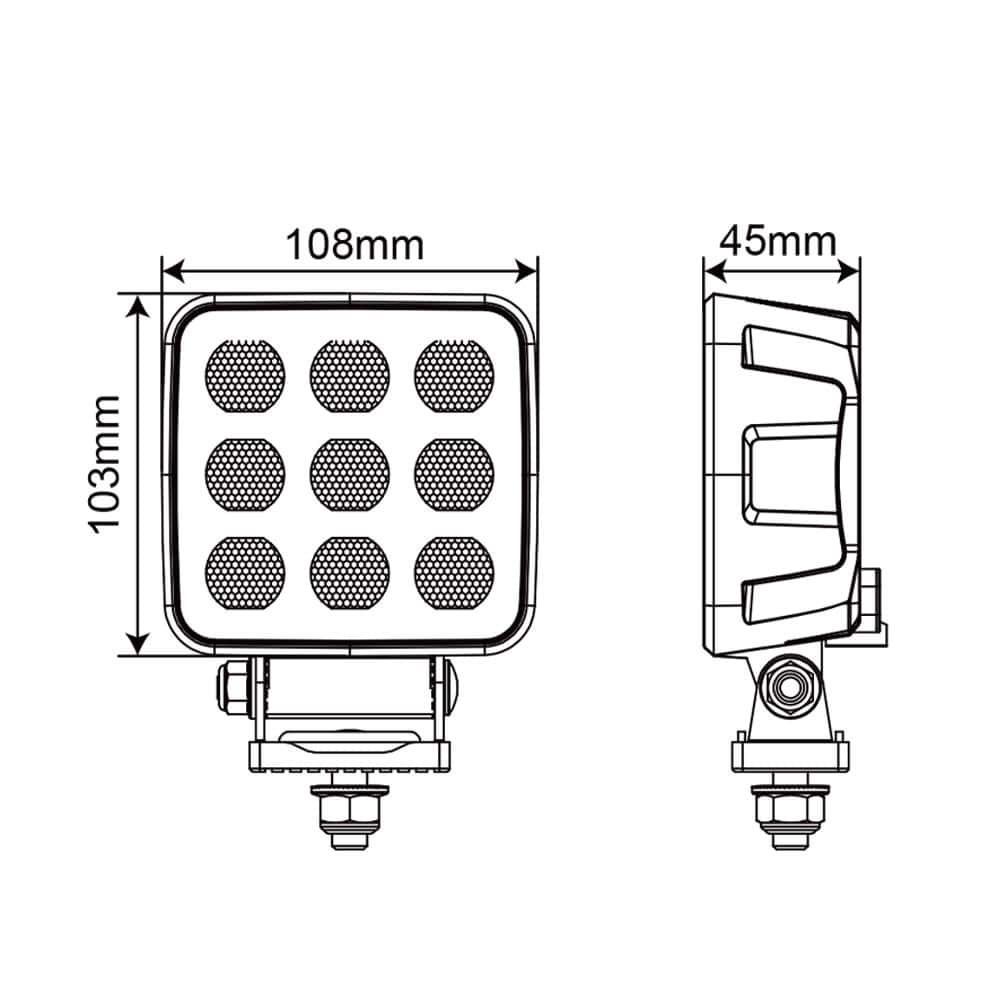

. Dimensions: 3.94″(108*103*45mm)
. Lens material: PC
. Mounting Bracket: Stainless Steel Bracket, Single Bolt M10
. Certificates: CE/ RoHS/ IP68/ IP69K/R10/ CISPR25 C3
. Vibration:15Grms, 3 axis
. Shock: 60G
. Salt Spray: NSS 500hours
. Protected against reverse voltage
. Built-in DT connector, with male DT connector with wire

Bezel-less design to to prevent accumulation of mud, snow and water.
Special designed optics, wide flood and even light distribution.
5000K & 5700K 2 color temperature options.
With internal automatical temperature control system (TCS), maximize the performance at right temperature, avoid overheat, extends the lifespan of light.
Compact size and universal shape.
Premium powder coating, corrosion, UV and chemical resistance, NSS 500H.
Unique cap breather to prevent moisture and foggy inside the lamp.

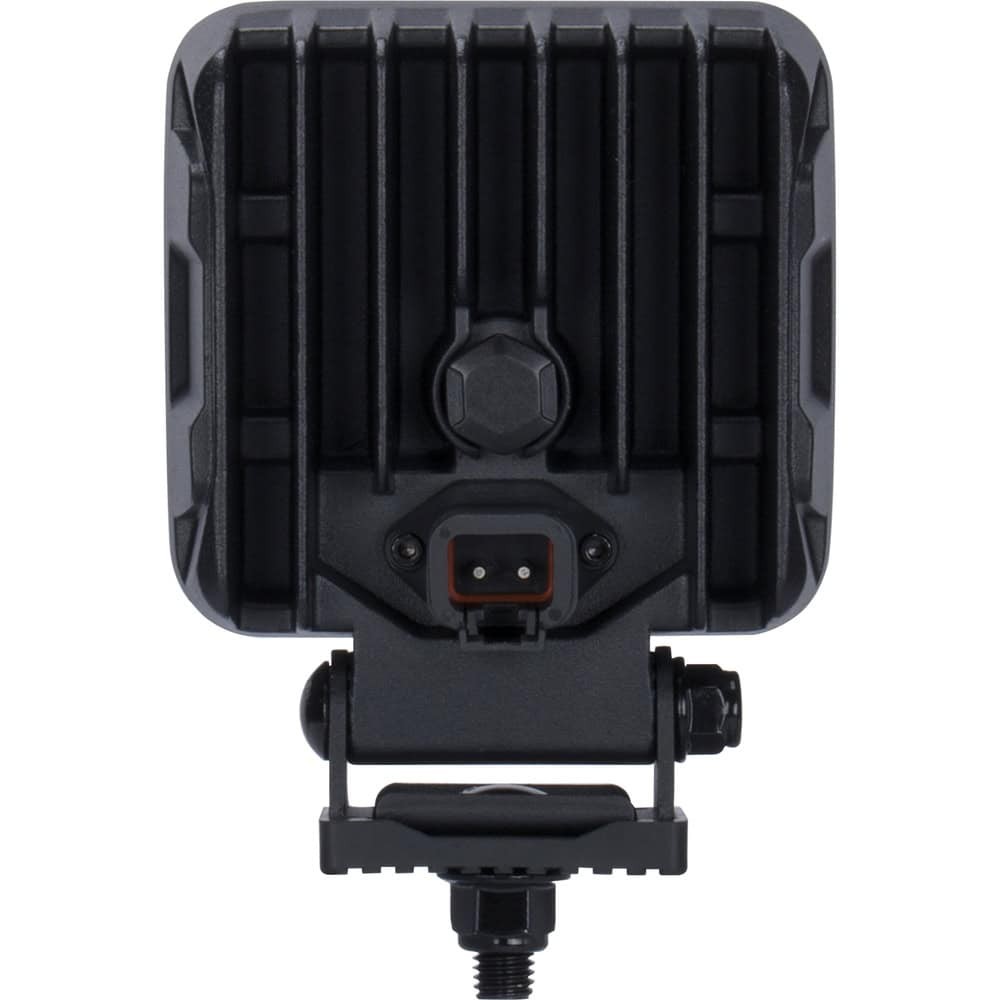

Built in DT2 pin connector for easy installation.
Stainless steel bracket with lock nut to ensure OE standard durability, meet 15G vibration 3 axe, 60G shock.
