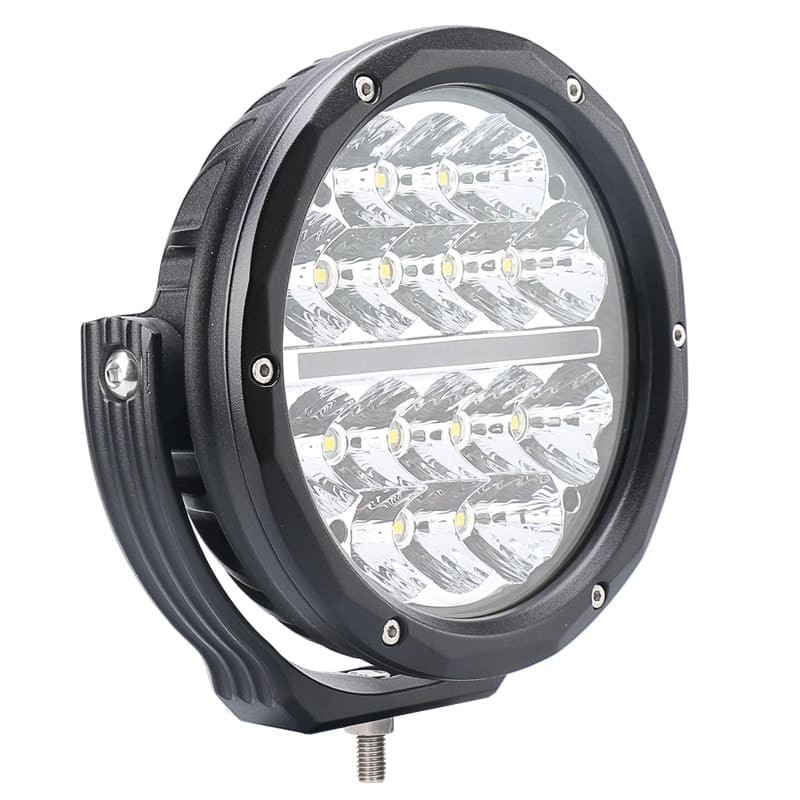

7 Inch ECE R112 Approval Round Osram LED Driving Light SpotLight with White Position Light
Electronic Parameters
LED Chip : 16 PCS 5W OSRAM P8
Operating Voltage : 10-30V DC
Theoretical Power (W) : 90
Actual Power (W) : 48
Current Draw (12V) (A) : 4.011
Current Draw (24V) (A) : 1.98
Optical Parameters
Raw Lumen (lm) : 10800
Effective Lumen (lm) : 4495.2
Beam Pattern : Driving Beam
Lux @ 10m (lx) / Driving : 870
Emitting Color : White
Color Temperature : 5700K
Structure
Color of Housing : Black
Color of Lens : Clear
Material of Housing : Die-Cast Aluminium Alloy
Material of Lens : UV-Resistant Polycarbonate (PC)
Material of Bracket : Die-Cast Aluminium Alloy
Bolt Size : M10
Testing Rate
Operating Temperature : -30℃～+65℃
Waterproof Rating : IP67; IP69K
Compliance / Certification
Certificate : CE, RoHS
EMC : ECE R10
E-Mark : ECE R149 (R112)
Function / Highlights
Circuit Function : Reverse Polarity Protection; Surge Protection; Soft Start
Highlights :

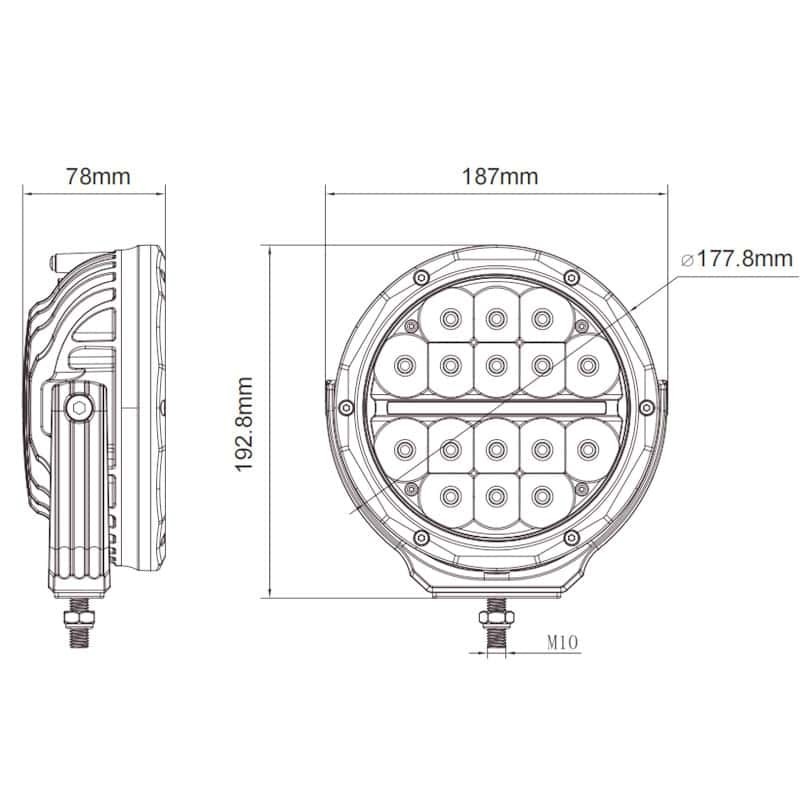

Dimensions
Dimensions (L x H x D) (mm) : 186.92 x 177.8 x 77.96 mm
Length (mm) : 186.92
Height (mm) : 177.8
Depth (mm) : 77.96
Height Including Bracket (mm) : 192.8
